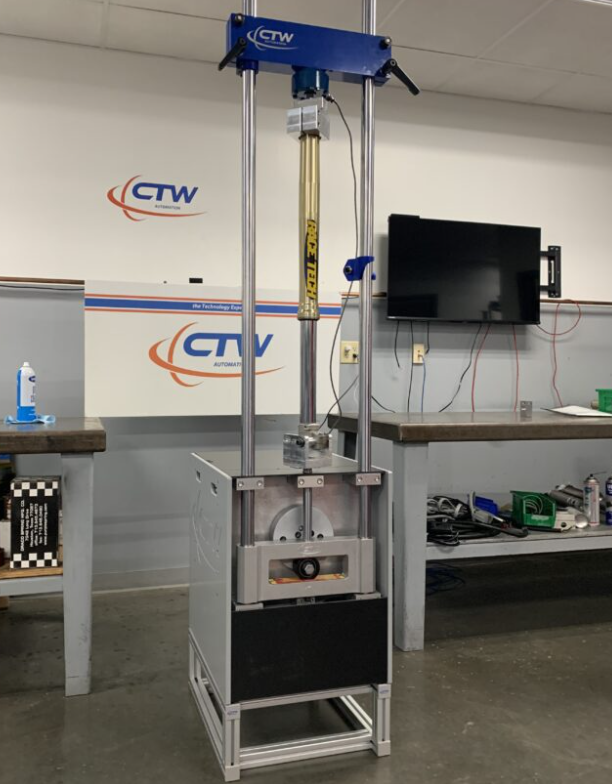

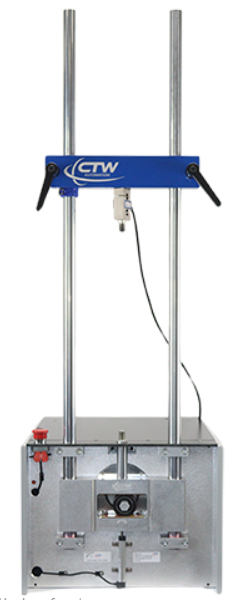

RD5 is 5HP machine with a peak stroke of 2.0″ and peak speeds over 40 in/sec.
The RD5 uses CTW-Probe Analysis software to allow the user to create and run Tests of various velocities on one of three strokes to collect force data that is presented in various industry-standard graphs. The RD5 is a compact, lightweight tabletop machine that is designed to be structurally sound where loading is applied based on FEA analysis. Measurements are taken based on the line of actuation to ensure only the damper or specimen result is recorded.
5HP AC motor with computer controlled variable speed drive
5K Pancake load cell for +/- 5,000 lbf. range
4 Clamp cross bar
Columns for 34” test opening
Strokes set at 0.5” – 1.0” – 2.0” spacing
IR-Temperature sensor and quick release mount
CTW Probe analysis software
Clevis fixtures, ½” with pins and brass buttons – set
Input power 200-240 VAC I/III phase – 40 /23.8 A(i)
1-Year Support package
